Replaces
Part Details
Specifications
About TRQ:
TRQ is a trusted brand dedicated to making every repair a success story by combining premium parts with easy installation. Each TRQ part is engineered by a team of automotive experts to meet or exceed OEM standards, delivering enhanced performance and maximum longevity. With rigorous in-house testing, the brand ensures superior fit and function across every product line. TRQ also provides customers with best-in-class, step-by-step installation videos—so you can complete repairs with confidence, whether you're a first-time DIYer or an industry professional.
Returns: Parts with electrical components cannot be returned once installed.
Attention California Customers:
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
Returns: Parts with electrical components cannot be returned once installed.
FREE Shipping is standard on Orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii, Alaska and US Territories. Shipping is not available to Canada.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii and US Territories as well as P.O. Boxes and APO/FPO/DPO addresses. Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace the turn signal switch on this 2003 GMC Envoy XL. It's the same part and a similar process on the regular Envoys from 2002 to 2009. The items that you'll need for this are a new turn signal switch from 1AAuto.com, flat blade screwdriver, Phillips screwdriver, 7mm and 8mm socket and ratchet, E5 inverted Torx bit, T25 Torx driver with a removable bit, 1/4 inch wrench and white grease.
Using an 8mm socket and ratchet just loosen up and remove your negative battery cable. Now remove these two 7mm bolts, one right here and one right over here. We'll fast forward as Mike does that. Now, pull this panel down. Then remove these 7mm bolts and these 7mm bolts. You can pull that panel down and off.
Pry out the tilt lever on your steering wheel. Then remove these two Phillips screws and then pull this down and remove these two Phillips screws. We'll fast forward as Mike does that. Now, pull this panel forward and pull it up and out. If any of those white caps falls off, just pick it up and put it back into place. Then you want to remove these two T25 Torx bolts and ours is missing, so we're not going to be able to do that, but there should be two T25 Torx bolts.

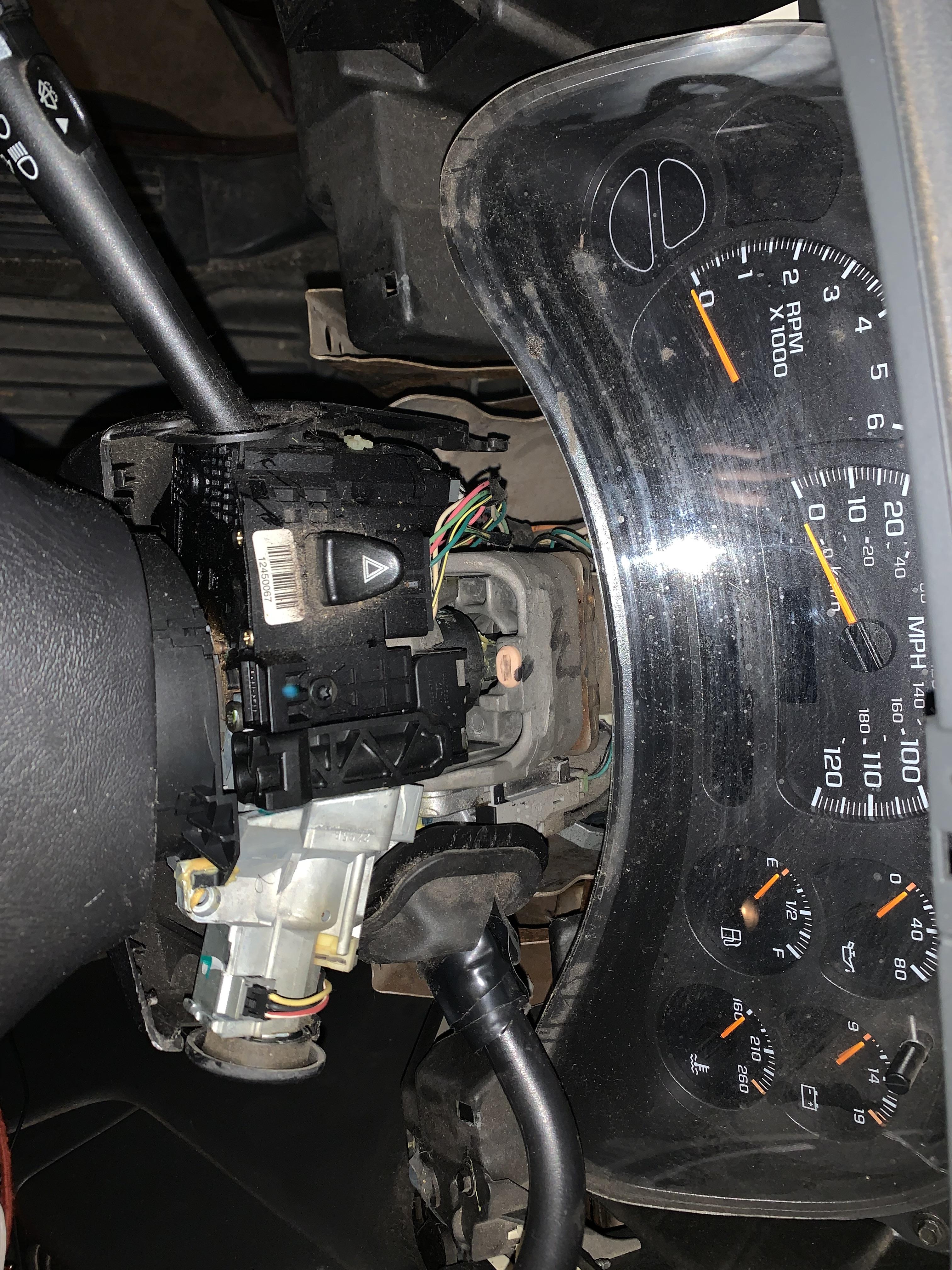

Now the cover's in two pieces, a bottom and a top piece, so you want to push back with your thumb and then pry down with a screwdriver around the ignition switch, and that should pull down. Then, the bottom should pull forward out of the top. Now tilt your wheel back up and there's an E5 Torx screw, it's a little bit hard to see but it's right up in there. We'll fast forward as I remove that. Now, lift from the back of the panel. Just pull it up and then slide it back. Disconnect this harness. Just pry out on the tab and pull it free. Then disconnect this harness. Again, just pry up on the tab, and do the same thing for this harness right here. Next remove these two T25 screws, one here and one right here. To get the lower one, you want a T25 bit from a T25 driver and a 1/4 inch wrench and you just push the bit into the screw and then turn the bit with the 1/4 inch wrench. We'll fast forward as Mike removes these two screws. Now just pull the switch up and then there's another harness on the back of it here. You just pry out this tab and pull the switch free.
On the left is the old signal switch, on the right is the new one from 1A Auto. You can see they're identical and they'll fit exactly the same. Apply some white grease inside here. Then reconnect this back harness. Then you want to put the switch back into position and you want to just push in this tab here and feed it down behind. Once the turn signal is in place, just replace those two T25 screws. You don't want to tighten either one up all the way first; you want to be able to just move the switch around a little bit to be able to get those screws to start in, tighten them as much with your fingers as you can and then use the wrenches and drivers. Now, reconnect those harnesses. Reconnect your negative battery cable and tighten it up. Then test out the switch, try out the hazard switch, turn signals make sure they all work. You can see everything is working.
Now, for reassembly, you may want to disconnect your battery again before you proceed, just to make sure it doesn't run down. Then you feed that top panel back in, you need to feed it under the steering wheel and then clip it into place and then rotate your steering wheel up and put that E5 Torx bolt back up in there. Line up the tabs on the bottom panel, push it back up into place. Do the same thing on this side. Once you have it all re-clipped together you can replace those two T25 screws. Tilt the steering wheel down and push this panel back into place. You want to angle the bottom in first and once you get it to a certain point, there's clearance for the top, you just tilt it back and push it in. Then we'll fast forward as Mike replaces those four Phillips screws and then replaces that lower panel and the 7mm bolts that hold it in place. Then that bottom panel and the 7mm bolts that hold that up. After that, if you haven't already, reconnect your battery and you should be all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
SWA41819
Bought for my 2005 silverado. Looked exactly like the original. Installed it and everything works as it should. No more bright lighting people when I turn the blinker on. I would recommend.
Great product, service, and installation videos!
Installation was easy and it looks and performs like the original. Quality is excellent.
Grade a product used on 2002 gm bravada
Functions awesome. When you turn the brights on, it's only a pull and not a push. It's a little different to get used to it.
Exactly the same as the OEM part that was removed. Thanks to the video I was able to install the new part without guessing and wondering if I was doing it right. Thank for the great product along with the instructional video ????
Very Good, perfecto para mi Chevy Silverado 2004 Z71
Works well. It's less smooth than the factory one, but everything works perfectly and I've used it in my daily driver for several years without issue. It's also much less expensive than OEM, so I can forgive the less premium feel.
The part showed up in about 2 days which was nice to get exactly what I needed in such a short time. It was pretty straightforward and easy swap out from the original factory switch. My original switch was keeping my bright headlights on at all times so I had to get this to replace it. The part works just as good as the original and no more problem with the brights staying on. Always a pleasure shopping with 1aAuto and using their youtube tutorial videos to install the parts they sell. It has saved me thousands of dollars so far doing the work myself on my cars.
I Am Happy With The Part Turn Signal Switch, I Put it On Myself & Works Very Well . As Always 1A Auto Great Company Thanks For Everything , Looking Forward?.????
It is possible to replace this multi switch without removing the steering wheel, just remove your steering column cover and everything is exposed to you.
I would lean more towards the wiper motor pulse module. Should be located under the cowl right behind the hood. Will need to remove wiper arms to get the cowl off to access it.
There could be multiple reasons why you're having this particular problem. We suggest taking your vehicle to a nearby reputable shop to identify the cause. Once you know the cause, we'll be happy to see if we carry the parts and how-to videos needed for your repair.
We suggest taking your vehicle to a nearby reputable shop to identify the cause. Once you know the cause, we'll be happy to see if we carry the parts and how-to videos needed for your repair.
This part will not add cruise control to your vehicle. This will only be a correct replacement for vehicles with cruise from the factory.
Yes - did everything the OEM part did
I'm sorry but who ever told you this I feel was incorrect. Pretty sure you cannot install this and you'll have cruise.
I don't recall but the turn signal part works great and I've had no problems with it fit perfectly easy install
