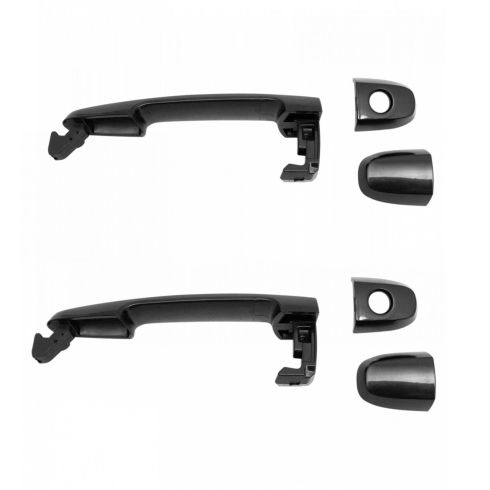

What's up guys? I'm Andy from 1A Auto. In this video, I'm going to show you how to replace the rear outside door handle on this 2010 Toyota RAV4. If you need this part or other parts for your vehicle, click the link in the description and head over to 1AAuto.com.
I'm going to take a trim tool and I want to get underneath this bezel right here. Slide this up, slide this out of the way and then disconnect the connector right here, just push down, disconnect the connector. Now, you don't necessarily have to take this off to take the door panel off. It just makes it a lot easier to disconnect the connector like this rather than while you're fighting and fumbling with the door panel.
Now, we want to take this cover out. Just take a trim tool, get underneath here and there's some clips that hold that on. Take this cover off right here. Sometimes you can just grab it with your fingers or you can get the trim tool underneath there, try to rotate it off. There's clips on there, the bottom and the middle and on the top. Now, there's three screws. There's one right here and two right there. I'm going to use a Phillips head screwdriver. Take these screws out, just grab it, and then these two and this last one. Take a magnet to get the bottom one out and, remember, these two are different than that other one.
Now, you can use some trim tools. I always like to start from the front of the door panel closest to the car in case you scratch anything and just go all around. There's just some push pins that hold the door panel on just like that, slide up the door pin. This handle should slide off here, should just be clipped in. Here we go, just slides down. We're going to take this inside door handle off. We want to take the cables off the handle, so disconnect this cable right here at the bottom one, happens to be the green one, which is the lever side, and the white one is the lock side. Slide it up and then slide the retaining ball out. Same with the white one, slide it up, twist it and slide out the ball. Disconnect this connector right here, goes to the door latch assembly.
Now, we're going to peel back the vapor barrier. You can take a razor blade or a utility knife and just cut some of this Butyl Tape. Generally, it'll stick to itself afterwards when you go to put it back on. If you have to add more, you can always add more Butyl Tape. If you're doing this in hotter weather, it's going to be a little bit easier to peel back. I just want to pull those cables through and then that wiring harness, just so I can peel back on this a little bit more. Just going to disconnect this speaker wire just so I can take the vapor barrier off completely, just so it's out of the way. Sometimes you can just fold it out of the way, but if it's in your way, sometimes it's just easier pull it off completely.
There we go set this aside. I'm going to take these screws out right here. I'm going to use a T30 socket and ratchet, take those screws out. Now, I'll just take this latch out, just slide in and you slide it down. I'm going to just slide the cables this way. You want to try to get the cables around this window channel. It seems like it would be easier to just take this channel out but this window channel goes all the way up, so we don't want to take that out if we don't have to. Slide the cables this way. You can slide the latch out just like that.
I want to take this cover off on the outside. It's kind of hard to see, but there is a screw that I need to loosen up. I'm going to use a T30 socket long extension and a ratchet. That's just going to go right there, just going to loosen it up. You don't have to take it out completely, you just have to loosen it up enough to get the cover off. Sometimes you need a little help with a trim tool, take a little trim tool and pry it out just like that. Then just grab the handle, you want to just pry it up a little bit and then slide it out towards the outside of the door. There's the handle.
Now, take the handle, just slide it... Actually, this part has to go in a little bit before the back part. Then, you kind of have to slide them in together and then just slide it towards the inside. Then, you can test it to make sure it works with the mechanism on the inside of the door panel. Take this cover, this cover is going to slide in position just like that. Then, we can tighten up that screw. Take that T30 socket and the extension, try to get it started and then we'll just snug it up with the ratchet. That's good.
We want to slide this back in position. I am going to try to slide these cables back through first. Have the cables come this way just like that, and just twist this around. All right, that worked. It wasn't the easiest, but it'd probably be easier to slide the latch mechanism in first and then slide the cables through. Either way you got them in. Then, we'll take these screws, get these screws started on the outside here. Take a T30 socket, snug these up and use a ratchet, tighten this down pretty snug.
Keep in mind that child safety lock, if you wanted this to lock and not be able to open it from the outside, you're going to want to have that in the down position or up position if you don't want that function. Keep that in mind so when you put it back together, don't think that your door latch is broken if you didn't put that in the right position. Another thing, when you're installing the latch, you have to have this lever lined up with the outside door handle. It's kind of hard to see, but you want to make sure that's lined up properly before you actually put the screws in.
Now, we want to take the vapor barrier, slide all the cables and all the wires in the correct positions you took them out. Sometimes it's easiest to get it started and then take all the wires and add those just like that. That's all secured. Now, reconnect the speaker wire, locking it in place. Reconnect the door latch, lock that in place. We want to reattach this to the cables. Slide the green cable into the bottom, that's the one with the handle, just like that. Then, through there, the white one goes on top just like that. Take the door panel, slide the handle right through here. There's two tabs right there on the top and the bottom. It's just going to slide into place right there.
If you check it from the outside just to make sure it looks good, that's right. Then, slide the top part of the panel in first, pull the wiring harness through here so you can connect the switch after. Then once the panel's lined up, you can just push it on. Take a Phillips head screwdriver, and these two longer screws are going to go for the handle part. Get those started first, snug those up. Then, this smaller screw is going to go right here through the handle. Snug it up, not too tight.
This cover is going to go over the handle, lock that in place. This cover is going to go right behind the handle, pull out the handle, line it up, lock it in place. Reconnect the window switch to the connector, line it up, lock it in place. Then, there's a slide right here that slides in the back, that slides like that, and then push down on the front.
