Replaces
4 Piece Drivetrain Kit
$314.95
8 Piece Suspension & Drivetrain Kit
$349.95
12 Piece Steering, Suspension, & Drivetrain Kit
$354.95
14 Piece Steering, Suspension, & Drivetrain Kit
$429.95
6 Piece Suspension & Drivetrain Kit
$434.95
16 Piece Steering, Suspension, & Drivetrain Kit
$479.95
8 Piece Steering & Suspension Kit
$484.95
Part Details
Specifications
About TRQ:
TRQ is a trusted brand dedicated to making every repair a success story by combining premium parts with easy installation. Each TRQ part is engineered by a team of automotive experts to meet or exceed OEM standards, delivering enhanced performance and maximum longevity. With rigorous in-house testing, the brand ensures superior fit and function across every product line. TRQ also provides customers with best-in-class, step-by-step installation videos—so you can complete repairs with confidence, whether you're a first-time DIYer or an industry professional.
Product Features

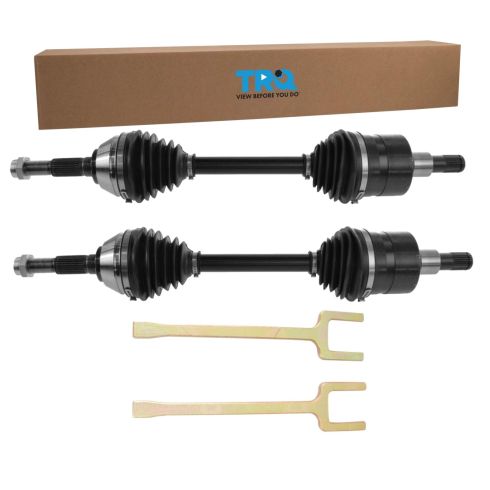

TRQ CV (constant velocity) drive axles are manufactured using premium raw materials designed to restore original performance. TRQ CV drive axles are new, so there is no core charge with your TRQ purchase. TRQ-designed drive axles utilize neoprene boots, moly grease, stainless steel clamps, and heat-treated ball tracks to ensure extended service life. Each TRQ axle is application-specific so each spline and thread will mate properly for a seamless fit. All products are fit and road-tested in our Massachusetts R&D facility to ensure we deliver on our promise of Trusted Reliable Quality.
CV axles are designed to transmit the power from your vehicle's drivetrain to the wheels while being able to flex and pivot to the demands of the steering and suspension systems. If your vehicle is making clicking noises at lower speeds or when making turns, it may be time to replace your CV axles with our 100% brand new assemblies.
Attention California Customers:
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
This part fits 9 vehicles spanning 2002-2009.
| Year | Make | Model | Description |
|---|---|---|---|
| 2004-2007 | Buick | Rainier | Buick Rainier All Wheel Drive Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| 2002-2009 | Chevrolet | Trailblazer | Chevrolet Trailblazer 4 Wheel Drive Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| 2002-2006 | Chevrolet | Trailblazer EXT | Chevrolet Trailblazer EXT 4 Wheel Drive Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| 2002-2009 | GMC | Envoy | GMC Envoy 4 Wheel Drive Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| 2002-2006 | GMC | Envoy XL | GMC Envoy XL 4 Wheel Drive Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| 2004-2005 | GMC | Envoy XUV | GMC Envoy XUV 4 Wheel Drive Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| 2003-2008 | Isuzu | Ascender | Isuzu Ascender 4 Wheel Drive Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| 2002-2004 | Oldsmobile | Bravada | Olds Bravada All Wheel Drive Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| 2005-2009 | Saab | 9-7X | Saab 9-7X Front 2 Piece CV Axle Assembly Set with CV Axle Shaft Popper Tool TRQ CSA37268 |
| Brand Label | Part Number |
|---|---|
| General Motors | 26079789 |
| GSP | NCV10248 |
| Isuzu | 8260797890 |
| Saab | 26079789 |
| Buick | 26079789 |
| Chevrolet | 26079789 |
| Oldsmobile | 26079789 |
| TRQ | CSA82129 |
| CTA | 4017 |
| CARDONE | 661345 |
| CARDONE Reman | 66-1345 |
| CARDONE New | 66-1345 |
This item may be interchangeable with parts from other brands with the above part numbers. This information is provided only for reference and does not guarantee that the item you are purchasing is identical to parts with part numbers from the brands listed above. To confirm that this item fits your vehicle, use the above "Check Vehicle Fit" option.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace the front CV axle shaft on this 2003 GMC Envoy XL. We show you on the passenger's side, but the driver's side is a similar procedure. The items you'll need for this include a new front axle from 1AAuto.com, 10mm, 15mm, 17mm, 18mm, and 19mm socket and ratchet, a piece of pipe for extra leverage, a 15mm and 18mm wrench, flat blade screwdriver, torque wrench, hammer, jack and jack stands, and a pry bar.
Start off by prying off your hub cap. Then just loosen up this 35mm nut. If you don't have the benefit of air tools, you'll want to take this nut off all the way at this point. Now, you can loosen your lug nuts as well. We'll just fast-forward as Mike does this. Once you've loosened them, just jack the vehicle up and then remove the lug nuts the rest of the way. Now the wheel will pull off.
The next few clips, we remove the brakes. You don't have to do this, but in my opinion it does make it easier to see back in there and get the axle out. There are two 17mm bolts that you remove to remove the caliper, hold the caliper slides with an 18mm wrench, and then pry the caliper up and off. You'll want to secure it somewhere with wire ties so that you don't stress the brake line.
Then you can remove your brake pads. Two 18mm bolts hold the caliper bracket in place. Again, you don't really have to do this, but it just helps to be able to see back in there with the rotor out of the way. Remove the two 18mm bolts using a pipe for some extra leverage, and do this slowly and smoothly so you don't break any knuckles or anything like that. The caliper bracket comes up and off. Then you can remove your caliper either by using a hammer, careful not to damage the rotor at all. If you have to hammer more than just a medium taps, then you'd want to use a couple of M12 bolts. They thread it into the holes in the rotor and help to press the rotor off.
Remove the center hub nut the rest of the way if you haven't already. Using a 15mm socket and ratchet and a 15mm wrench, just remove this bolt. Now, using a hammer, just hit the upper control arm off the ball joint. Now, just pry open this clip and pull the harness free. You want to secure your caliper just somewhere out of the way. We just wire-tie it right here onto the backing plate.
Now, you want to remove these two 10mm bolts. We'll fast-forward as Mike does that. Now, just lift up on the upper control arm and pull this back. Make sure that the axle is loosened from the hub. Okay, to get your axle out, you need to use a pry bar or some other long item. You want to put it up in, and put it on the back of the axle right where it connects to the transmission or the axle I should say. Make sure you're hitting the middle and it comes right out. If you want to do the driver's side, you'll need to remove these four 15mm bolts to pull this panel down in order to access it.
Pull your axle the rest of the way out of the differential. Move stuff around a little bit and then get it going up. I'm just going to angle it up a little bit and get it going up, in, and remove it from the hub. Careful of all your ABS wires and hoses and stuff, eventually it comes out. Up top is the old axle; below it is the new one from 1A Auto. You can see they're identical, and they'll fit exactly the same.
Move the new axle up and in. Again, be careful of all your wires. I just feed it right into the hub. Pull it, move, just maneuver a little bit, and get all the way into your hub. Then pull on it and feed it into the axle. Careful with the seal. You want to put the steering knuckle back up in place as you go so you don't over extend the CB. I'm just going to put that in place, push your axle right in, and make sure it's locked.
Now replace your brake line bracket and the 10mm bolts that hold it into place. You just want to use the upper control arm to hold the wheel knuckle in place while you're doing this. Re-clip this harness. Now hammer your upper control arm back down into the ball joint. Replace the bolt and the nut and tighten them up. You want to tighten and then torque this nut and bolt combination to 55 to 60 foot-pounds.
You want to make sure that these holes line up in between the two holes that are on the hub. Then you just slide your rotor back into place and replace a lug nut to hold it into place. You want to check these slides on your caliper bracket and make sure they're greased up. If they're not, just apply some brake grease to them. Then fit the bracket into place and then just start twisting in your bolts by hand and then tighten them up. Torque these two bolts to 110 foot pounds. Torque each of these to 110 foot pounds. Then just replace your brake pads and if there's no grease on the ends, just apply some brake grease.
Now, push your caliper back down into place and replace those two 17mm bolts. We'll fast-forward as Mike does that and tightens those up. Now torque each of those to 40 foot-pounds. Replace the hub nut. Remove the lug nut that you put on there to hold the rotor in place, and then put your wheel in place. Then replace each of the lug nuts and tighten them preliminarily. Now torque each of these to 100 foot-pounds in a crossing pattern. Then torque the hub nut to 103 foot-pounds. Then replace your hub cap.
After you've done any work on the brakes, you want to just pump the brake pedal until it firms up. Then you want to do a stopping test from five miles per hour and then 10 miles per hour.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
CSA37268
I have a 2006 Trailblazer SS AWD and the CV Axles I got from A1 along with the release tools were a sintch to switch out for the stock ones. Much smoother handling and no hard bumps in the steering wheel or vibration. My Trailblazer SS with these CV Axles is better than when I bought it new. Thanks, A1
