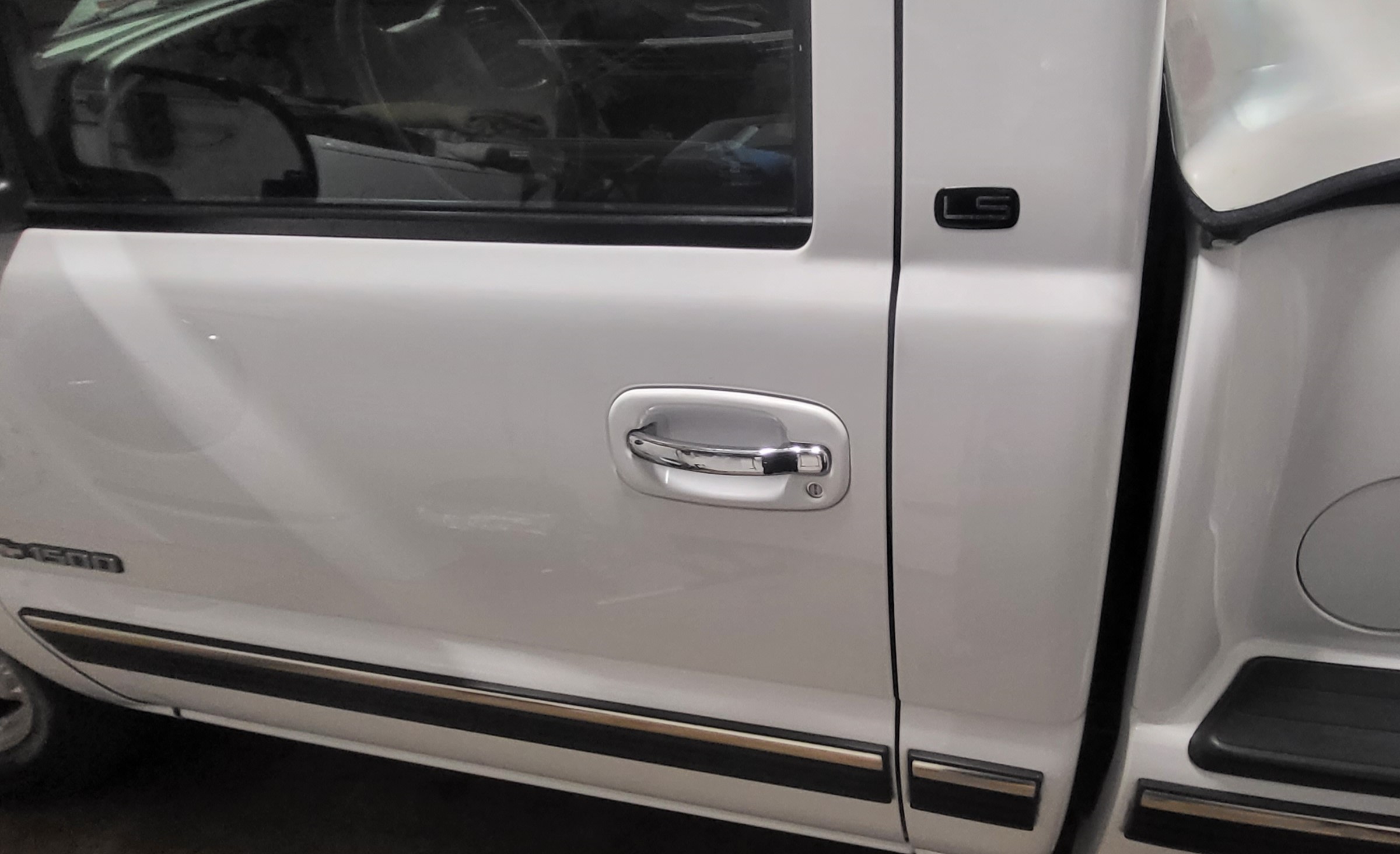

These handles add to the vehicle when painted to match the vehicle. Gives it the Escalade look.
Replaces
Part Details
Specifications
About TRQ:
TRQ is a trusted brand dedicated to making every repair a success story by combining premium parts with easy installation. Each TRQ part is engineered by a team of automotive experts to meet or exceed OEM standards, delivering enhanced performance and maximum longevity. With rigorous in-house testing, the brand ensures superior fit and function across every product line. TRQ also provides customers with best-in-class, step-by-step installation videos—so you can complete repairs with confidence, whether you're a first-time DIYer or an industry professional.
Attention California Customers:
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on Orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii, Alaska and US Territories. Shipping is not available to Canada.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii and US Territories as well as P.O. Boxes and APO/FPO/DPO addresses. Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace the exterior door handle on this 2002 Chevy Suburban. We show you on the passenger side but the driver side is the same procedure. The items you'll need for this are a new exterior door handle from one 1AAuto.com, a flat blade screwdriver, an 8 and 10 millimeter socket and ratchet with an extension, and a 10 millimeter wrench.
Start off by prying up your switch panel and then pushing the tab on the harness and disconnecting it. Next remove this eight millimeter bolt, this eight millimeter bolt right here, and this eight millimeter bolt at the bottom of your door panel. We'll just fast forward as Don removes those three bolts. Pull out on this triangle panel and then pry out on this panel from the outside and then slide it over the handle and out. Now, lift the door panel up and pull it free. Next, pry out your courtesy light and just push it through the door panel, and then pry out on the tab and disconnect the harness. Push the tab on this harness and disconnect it. Then, pry out on the tab on this harness and pull it free. There your door panel is free.
Using a flat blade screwdriver, just pry this clip off your door handle rod, and then pull the rod out. Now, remove this 10 millimeter bolt. Now slide the door handle towards the inside of the vehicle and out. Then just carefully pull back the water shield, making sure you don't damage it. I'll fast forward as Don does this.
Then, pry out this cap. In here, you'll see a 10 millimeter nut, right there, and there's another 10 millimeter nut right inside here, as you can see straight back behind by that green clip, and then there's one more 10 millimeter nut on the back side of the door handle, up in the top left corner. We'll fast forward as Don removes these. You want to use that 10 millimeter wrench for that one in the top left corner, and then, for the other two, through those holes, you can just use a socket and ratchet. Now flip this green clip off the door handle rod and then pull out this lock rod by disconnecting the clip the same way as the green one, and then just angle the door handle down and out. You'll have to swap over your lock, so just pry out this clip and then pull the lock free.
On the left, is the old door handle. On the right, is the new one from 1A Auto. You can see they're identical and they'll fit exactly the same. If you want it to match your vehicle, then you want to just take the door handle to an auto parts store, the paint department, get a can of matching paint, and paint it to match your vehicle.
Push your lock into your new door handle, and then, feed the door handle into place. We'll fast forward as Don replaces those three 10 millimeter nuts. Now re-clip your lock rod and door handle rod and replace this cap. Now, replace your water shield, making sure all the harnesses are pulled through. Put your door handle rod back into place in the interior door handle and re-clip it, and then push the tabs on the door handle back into the door, and slide it back towards the outside of the vehicle. Then replace that 10 millimeter bolt.
Now, to make putting the door panel back on easier, it helps to just pry out your manual lock switch. It just pulls right out. Then you want to reconnect your harnesses, and then pull your courtesy light harness through the door panel and reconnect your courtesy light. Then push it back into place in the door panel. Then put those hooks into those bottom slots and then slide the door panel back in place. Make sure all the clips are lining up, your harnesses are pulled through, and that it's fully back in place. Now line up the rod with the manual lock, and push it back in, and then, replace those three 8 millimeter bolts. Now, you want the inside of this panel to go in first, so slide it over your door handle, and then, tuck that inside end in first, then the middle tab, and then, the back tab. Replace this triangular panel and then reconnect your switch pack harness, push the back end and then push the front end, and you're all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
DHA36970
These handles add to the vehicle when painted to match the vehicle. Gives it the Escalade look.
Parts well made. I like that 1A offered door handles with smooth bezel and chrome handle. Perfect for painting the bezel. Better than all white.
Worked as it should
Love this company, love their products!I am a customer for life! Plan on purchasing all my automotive accessories from 1A auto
The handles I received were exactly as described and installed without difficulty. Happy to have functioning door handles, again.
They make my truck look more updated. I'm right up there now with the 2017 Silverado look.
The handles arrived a lot quicker than i expected. It fit just perfect but the installation was a little more difficult than the video but then again i do not have the shop that the repairman had but all in all i am very satisfied with the product and will return to your site if and when i need any other parts and of course i will recommend your Company to everyone that needs parts. Thanks again
