October 21, 2025
TRQ Air Suspension
Nice kit, a bit stiff on the front end. Overall nice ride.
Replaces
Part Details
About TRQ:
TRQ is a trusted brand dedicated to making every repair a success story by combining premium parts with easy installation. Each TRQ part is engineered by a team of automotive experts to meet or exceed OEM standards, delivering enhanced performance and maximum longevity. With rigorous in-house testing, the brand ensures superior fit and function across every product line. TRQ also provides customers with best-in-class, step-by-step installation videos—so you can complete repairs with confidence, whether you're a first-time DIYer or an industry professional.
Product Features
Pro Tip: Suspension system air leaks are the leading cause of compressor failure. We recommend inspecting all of your vehicle's air lines and air springs for wear or cracks to avoid premature wear and damage to the new suspension compressor pump.
Returns: Parts with electrical components cannot be returned once installed.
Attention California Customers:
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
Returns: Parts with electrical components cannot be returned once installed.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and, please, next time you need parts for your vehicle, think of 1AAuto.com.
In this video, we're going to show you how to replace the air compressor on this 2002 Chevy Suburban with the air ride system. It's the same part and similar process on these Suburbans from 2000 to 2013. The items you'll need are a new air compressor from 1AAuto.com, 8 millimeter and 12 millimeter socket and ratchet with an extension, T25 Torx bit, Philips screwdriver, pliers, vise, hammer, wire cutters and wire strippers.
Now, your air compressor is right here and you should probably start off by removing your spare wheel. Okay, as you can see, the compressor on our vehicle is in really poor shape and this video is basically going to show you how to replace just the compressor motor, the electronic part. You're going to reuse the other compressor parts. On this vehicle we find that it just doesn't work because of the poor shape of the rest of the compressor. If your vehicle is rusty, you may want to consider, and I'd highly recommend, spending the extra money on the entire assembly that 1AAuto sells. Then, what you want to do is just pull out the clip on this hose and pull it from the compressor. Then, you want to just reset that clip by just pushing it back in. You want to loosen these two 12 millimeter nuts and the one in through this hole, and we'll just fast forward as Mike does that. Now, lift the air compressor up and then pull it forward. You want to just push the tab on this harness and pull it free and then twist this hose free from up here.
Now, you want to just pull out these clips holding this cover into place, just using a pair of pliers. You just want to hold on to the clip and just pry it out. Do the same to the other two. Then, you want to remove these three T25 Torx bolts. We'll just fast forward as Mike does this. These are some of the parts that if they break . two of mine broke off. So, they were unusable. If I wanted to just use the motor, like I said we ended up going with the whole assembly that 1AAuto sells.
Now, on the left, is the old motor; on the right, is the new one from 1A Auto. You can see they're identical and they're going to fit exactly the same. You do have to transfer a couple of things over from the new motor though as we'll show you right now. First, you want to just pull hose free. Ours is in pretty bad shape and ended up taking half the motor with it. Just empty it out and push it into place in your new motor. Then, just pull up on the tab and disconnect this harness and then pry this connection from here. It helps to use the screwdriver to just kind of pry it out. Then, you just want to just remove this Philips screw right here. It's pretty rusty, but we do the best we can with it. Now, remove the wire ties using some wire cutters. Now, you just want to pull back this cover and pull back this cover. There's a clip right here and then clip right here. Now, you can pull your wires free. Again, just pull back that cover off of each of these wires. Now, you just want to line up your wires and then clip the wire and then use your wire strippers to strip the end of the wires. Now, you're going to want to twist the ends of those wires that you just stripped and then push the matching colors into the splices: the red wire with red wire, white wire with white wire, blue wire with blue, black with black. You can now use your crimping pliers to crimp the splices. We'll fast forward as we repeat that for all four wires.
Now we have the assembly in a vice and we're going to twist the drier free. You're supposed to be able to take these T25 bolts off and remove this bracket and transfer it. Let's see how we can transfer. Transfer it onto there and then you would wrap these wires around and clip them to that bracket. As you can see, from our old motor, there is just no way where you're going to be able to get those things apart. Now, take this air filter and just put it into a vice and twist the top off and you want to do it carefully because there is a spring inside of there. Now the new air compressor comes with a kit to rebuild this so just pull the spring out, pull the gasket off, pull this screen out and this pad. You want to dump out these pebbles and then pull out the pad on the bottom and the screen that's on the bottom as well. Put the filter back into place and put the new screen down in and the pad, then the new beads, then the pad and then another screen. Now, you can take your new spring and push that into place and then take your lid, put the new gasket around the lid and twist that down into place. Now, take the new O-ring and put it on to this end here and then just twist this into your new air compressor. Then you want to just remove this front screw using your 8 millimeter socket and ratchet and just pull that free and you can put your wire from your old compressor on to it and then put the bolt back down into place.
Reconnect this harness and then you can push these pads into their proper holes and we'll show you one of them and you just push it up into place and then repeat the process with the other two and because of the condition of our old bracket, we can't really show you putting the compressor back into the bracket but you would just put it back into place and then replace those three T25 Torx bolts and then just push that harness back into the bracket. You take your harness and connect it to your new compressor. As you can tell, the whole assembly that I'm holding is a brand new unit. Like I said, the compressor in our vehicle was so bad that this was the way we had to go, and I would recommend that, if your compressor is as rusty as ours was or even close, spend the extra money and get the whole assembly. It's a matter of just three bolts and a couple of connections to remove and replace. Push this hose up into place, and then push this hose back into place as well and then you're all set
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and, please, next time you need parts for your vehicle, think of 1AAuto.com.
In this video, we're going to show you how to replace the air shocks on this 2002 Chevy Suburban. It's the same part and similar process on these Suburbans with the air shocks from 2000 to 2013. The items you'll need for this are new air shocks from 1AAuto.com, 21mm socket and ratchet with an extension, 21mm wrench, pry bar, and jack and jack stands.
Start off by disconnecting this harness. Just pull up the tab and pull it free. For the air hose, you want to pull down on this clip and then pull the hose free. Then, push the clip back in to reset it. Now you want to remove this 21mm nut and this 21mm nut. Using a ratchet and a wrench, remove those and we'll fast forward as Mike does this. Jack up the wheel unless your vehicle is on the ground then you'll be all set and then pull those two bolts out. You can pull your suspension forward and out.

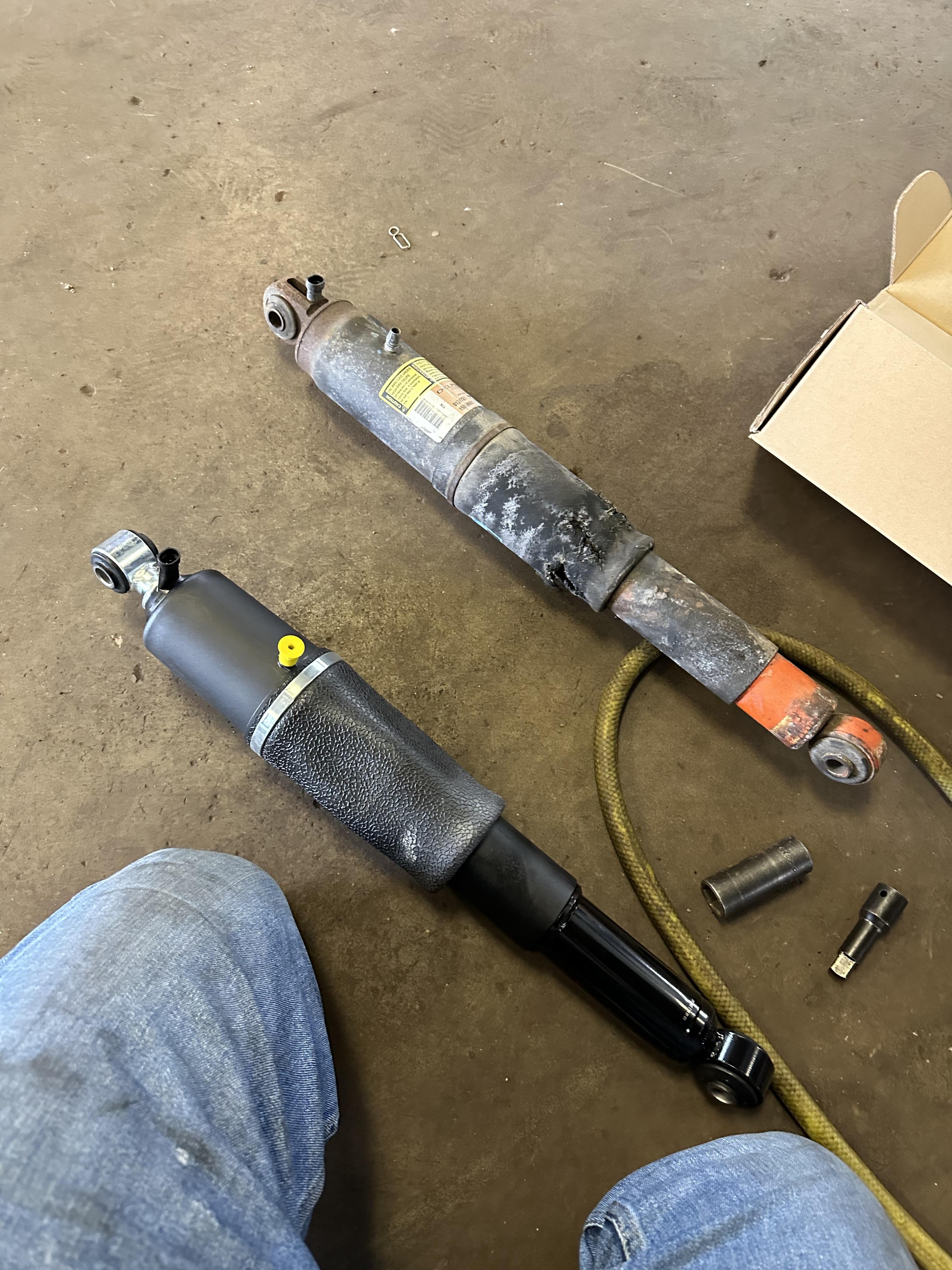

On the bottom is the old air shock. Above it is the new one from 1A Auto. You can see they're identical and will fit exactly the same. Put your new air shock up into place and replace that top bolt first, and then, push the lower one into place and replace those bolts and the 21mm nuts. Push your harness into place and then push your air hose into place and you're all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
PAA80074
Nice kit, a bit stiff on the front end. Overall nice ride.
Easy install. Works great
It was shipped very quickly. Everything went on smoothly. It rides beautifully. Air system works great. Their communication on shipping was first rate.
Such an easy replacement to swap the rears, fronts, and compressor. The 2002 Denali is riding like new again. Direct and easy plug and play swap.

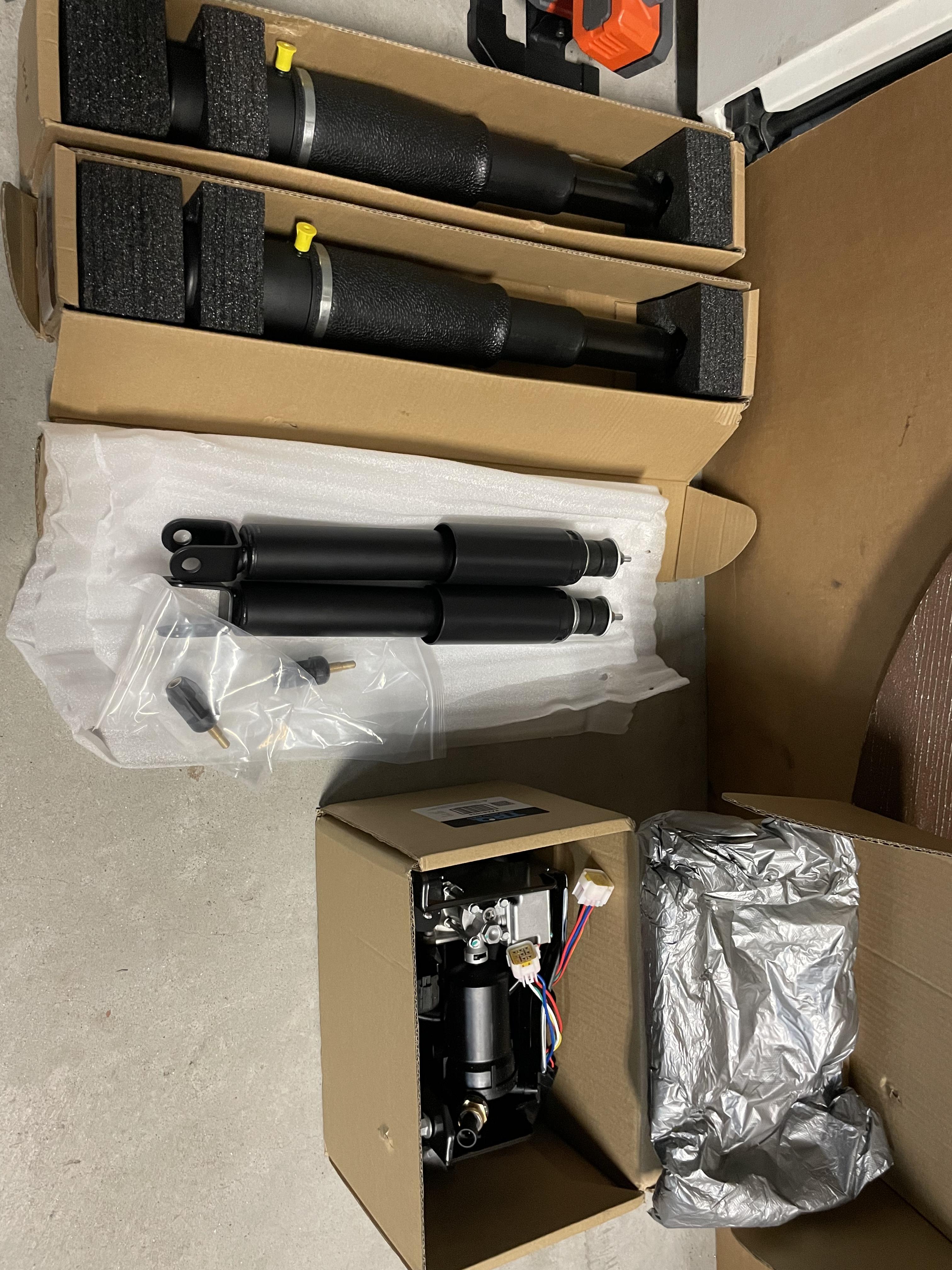

Absolutely worth spending an extra $100 for the 5 piece kit with new air compressor in the new mounting bracket. Super easy install. Unbolt the old & install the new. Yukon Denali drives like new. Thanks 1AAuto!
Excellent customer services
I have a 2003 Yukon Denali XL that needed some TLC after owning and driving for about 80k miles and hardly any real maintenance. At 151k miles I Pulled the original equipment off and replaced with this set. Rides like a champ now. Caution for the rear sensor plugs are a bit longer than OEM if your like me and havent replaced them yet. Also watch out as the sensor plug and air hoses are very tight especially with the longer sensor plug. The fronts have a really nice removeable plug as well whereas my OE fronts had a split post for the sensor. This was handy as they were really right as well, not a lot of wiggle room. The compressor was really nice and straight forward with a slightly newer design. Overall the kit came when I wanted and installed perfectly, I can only assume it rides like new, but to me it never rode so good!
Yes, this kit will fit your vehicle.
Yes, this part will fit your vehicle.
Thank you for the inquiry. The main difference between the two sets is the compressor. This kit will fit many different year, makes, and models of vehicles and depending on what you have and the compressor, you will need a certain kit. You can see all of these details on the listing on our website.
Please provide your full vehicle information or VIN number to confirm product availability and fitment.
Yes, this part will fit your 2002 Chevrolet Tahoe. The conversion kit removes the electronic adjustable shocks and/or struts on your vehicle to provide you with reliable conventional components.
Yes, this part will fit your vehicle.
Yes, according to the information you provided, this part will fit your vehicle.
Based off the vehicle information provided, this set is listed to fit your vehicle.
Thank you for the inquiry. The main difference between the two sets is the compressor. This kit will fit many different year, makes, and models of vehicles and depending on what you have and the compressor, you will need a certain kit. You can see all of these details on the listing on our website.
