TRQ is a trusted brand dedicated to making every repair a success story by combining premium parts with easy installation. Each TRQ part is engineered by a team of automotive experts to meet or exceed OEM standards, delivering enhanced performance and maximum longevity. With rigorous in-house testing, the brand ensures superior fit and function across every product line. TRQ also provides customers with best-in-class, step-by-step installation videos—so you can complete repairs with confidence, whether you're a first-time DIYer or an industry professional.
Product Features
TRQ suspension kits are manufactured using premium raw materials and coatings for extended service life. Each TRQ suspension component is designed to be a direct, maintenance-free replacement to the stock unit. To extend the life of your steering and suspension components, TRQ recommends replacing components in pairs, sets, or kits. All products are fit and road-tested in our Massachusetts R&D facility to ensure we deliver on our promise of Trusted Reliable Quality.
Our steering and suspension components are pre-greased and sealed for long life and do not require the extra maintenance typically required by greaseable versions.
Attention California Customers:
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks.
In this video, we're going to show you how to replace a trailing arm on this 2003 Chevy Monte Carlo. It's the same part and similar process on these Monte Carlos from 2000 to 2007. We show you on the passenger side, but the driver side is the same procedure. The items you'll need for this include a new training arm from 1AAuto.com, 15mm, 18mm, 19mm, and 24mm socket and ratchet, a piece of pipe for leverage, 18mm and 24mm wrench, an adjustable wrench, a torque wrench, jack and jack stands, and a hammer.
Start off by loosening these 19mm lug nut caps, and then pull your hubcap free. Remove these 19mm lug nuts. You want to loosen these while the vehicle is on the ground, raise it, and remove them the rest of the way. If you have air-powered tools, you can remove them entirely when the vehicle is entirely in the air. Once the lug nuts are removed, pull your wheel free.
Spray penetrating oil on this bolt and the bolt up here at the top of your controller. Then just remove this lower bolt. The easiest way to do that is using a 24mm wrench. Once the nut is removed, just break that bolt free. We use air-powered tools to do this, but you could also just use hand tools with a piece of pipe for leverage. Just keep twisting the bolt until it loosens up.
Once it's loosened up, you can just hammer it out the rest of the way and then just pull that down. Using an 18mm wrench, just loosen up this top bolt. When you get it loose enough and the trailing arm lowers, you can then access these two bolts and this bolt right here. All three of those are 15mm. We'll just fast-forward as Mike removes them.
You want to put this somewhere where there's a gap. You can put the bolt down in, and then, just using a hammer, hit the bolt out. You may have better luck and it may just pull out. If yours looks like ours, this is probably how you'll have to do it. You'll need the bolt out of the other one as well.
On the bottom is the old trailing arm and bracket; above it is the new one from 1A Auto. You can see they're identical, and they'll fit exactly the same. Take the new trailing arm and bracket and push the bolt through. Replace the nut on the other side. Push the bracket up into place and replace those three 15mm bolts. Just tighten those up. If you used air-powered tools, go around again with just a ratchet and socket and make sure those are tightened up as tight as you can get them.
Put the lower end of the trailing arm back into place, push the bolt through, and then replace the nut on the other side. Just tighten that up, and for right now you are just tightening this preliminarily. Do the same thing with the top bolt. Now you want to lower the vehicle down onto jack stands, putting all the pressure on the suspension and then tighten up these two control arm bolts the rest of the way.
Replace your wheel, replace the lug nuts, and tighten them up. You want to tighten those while the vehicle is on the ground, and then you want to torque each of them to 100 foot-pounds in a crossing pattern. Replace your hubcap and tighten up those lug nut caps. Then you're all set.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
PSA36594
Great

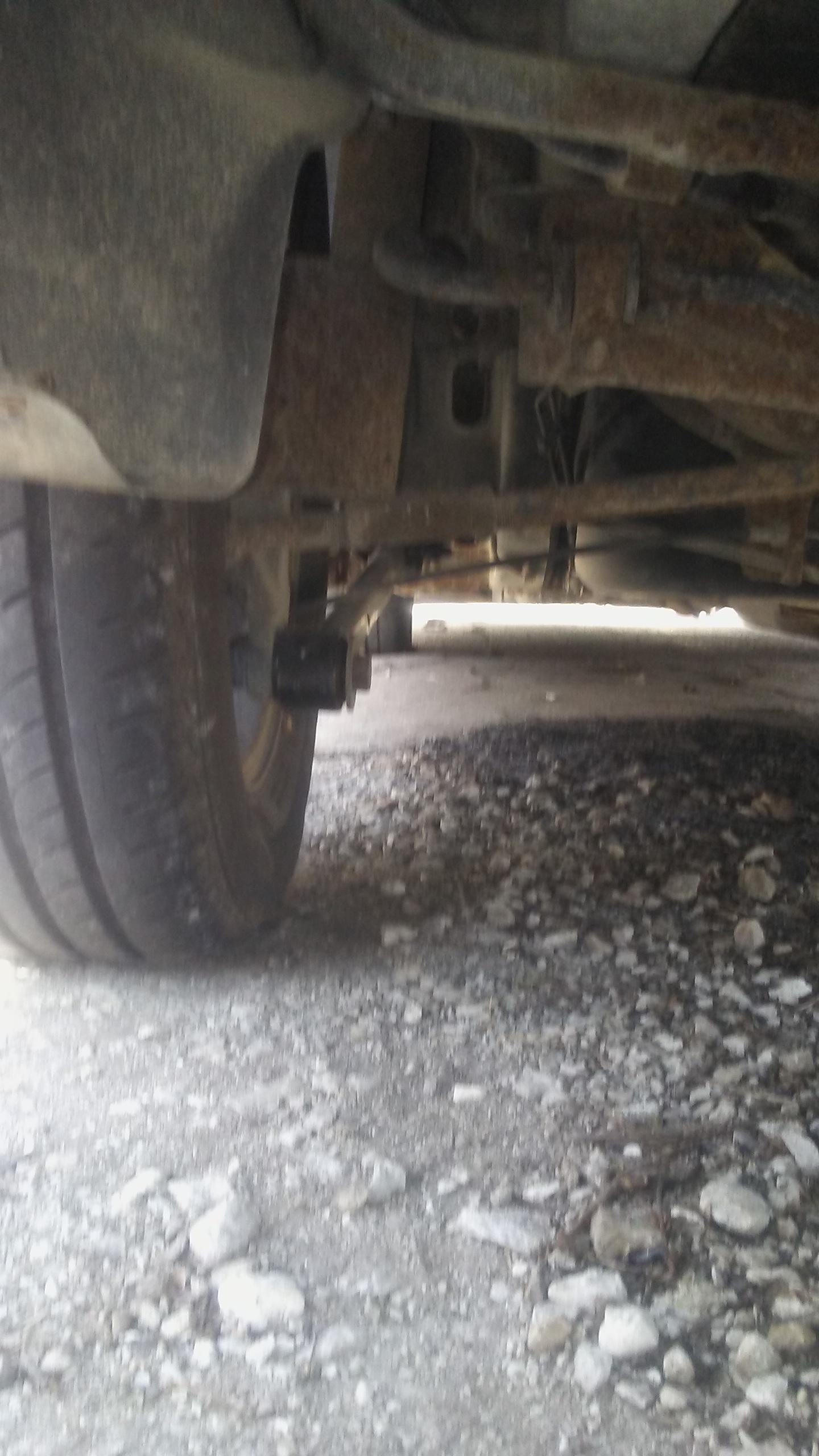

I ordered this trailing arm kit from 1A AUTO they were a better set then the original ones that rotted though! These were very easy to replace. I was able to do this in my driveway I would recommend them 100 percent and the video is great showing how it is done! And the price was better than I expected. I will be ordering from A1 AUTO for my 04 Monte Carlo
No, for the year 1991 this part is only listed to fit the Lumina. This part will not fit your vehicle, but we may have a part that is listed to fit. Please enter your vehicle's year make and model in the search bar at the top of the page. This will display parts guaranteed to fit your vehicle. Just be sure to verify all of the information shown in the Vehicle Fit tab before ordering.
