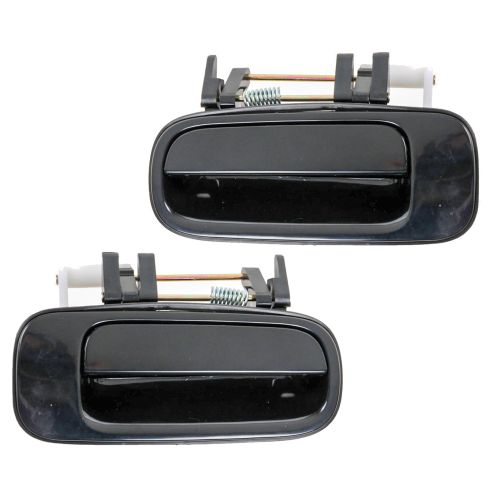

1994 Toyota Camry Rear Driver & Passenger Side 2 Piece Exterior Door Handle Set TRQ DHA32709

Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the internet. Hi, I'm Mike Greene, I'm one of the owners of 1A Auto. I want to help you save time and money repairing and maintaining your vehicle. I'm going to use my 20 plus years experience, restoring and repairing cars and trucks like this to show you the correct way to install parts for 1AAuto.com. The right parts installed correctly that's going to save you time and money. Thank you and enjoy the video.

In this video, we're going to show you how to remove and install the rear door handle on this '94 Camry. The only tools you'll need are a Philip's screwdriver, a regular screwdriver and a 10 mm socket with ratchet and an extension. Start out, use a flat blade screwdriver, push it up in the air, pull that out and then down in here. You want to go a little further on the bottom, and then that pops off. Then the power window switch, from under the front and that slides up and out and then there's a little button right here. You press with your thumb, disconnect that. Then there's a little plug here that covers a Philip's screw, okay that. Philip's screwdriver and then another Philip's screw right under here. You kind of got to put your screwdriver up in there, feel around a little bit until you get it. Then on the back of the door, you have little pins here, push the center in. Another one down here, push the center in and then either using a screwdriver or a your fingernails just pry those out. There are two more of those on the front, one up here and one here. Then probably the best thing is use a putty knife, stick it in, slide it until something, pull out and there's three clips and then lift your door panel up and off.

To replace the door handle, what you're going to have pull that back some and you're going to use a good size screwdriver and you want to pry, this is a pin to the door here. You basically want to get the screwdriver in behind it and pry it away. I've already done it once so it came kind of easy. Now, you're going to remove three screws for the latch mechanism here. You're going to pry this black, it's like a knob, it's actually your child lock switch or knob, pry it out. Now, you want to push your lock mechanism down. That reveals two bolts, okay there is one 10 mm bolt and then the other 10 mm bolt is right there, although I think you can get to it through this hole somehow. Right there is your other 10 mm bolt. I'm going to use a driver, actually an extension with a 10 mm socket. I'm going to do this one first. You can actually see right in through this slot. There's my bolt. Then this one. Once those bolts are out then you just take your handle, lift up and out. Okay then the 1A Auto handle, is exactly the same. Now, what happens is this plastic clip can break or one of the arms here can break and obviously if you are just worried about making your door function then a black handle will do fine.

If you want to paint it to match, you can go to an automotive parts store that has a good department and they can help you find your paint code. They can mix up some paint to match and you can spray it yourself. It will be a pretty good match anyways. Obviously, reinstalling, you put it in and it's going to fit a little tighter it looks like. Put it and then tighten it and put your bolts on. Okay, take our bolts, put them into our driver, and carefully feed them in. Going to get in your way for a second. Get one started. Got that one in. Now I'll get this one started before I tighten them up. Okay, now I'm going to make them nice and firm. Now, my latch mechanism put that in place. I'm going to hold it with this finger here through the hole, start one of those little screws then I'll start the other one. Make sure I'm getting contact with the handle. Make sure this is all free and just pop this back into its hole. Replace the water shield and you can see the white right in here, just make sure that pin goes into that white. I'm just going to speed through putting the door panel back on, if you want to see this in real time, check out our other videos for the door panel installation and removal. Although since you took it apart, you should do it, you probably can put it together because it's just a reverse of the procedure. Hanging the door panel on there, put the pins in, a couple of screws and snap a couple of bezels back on and you'll be back on the road.

We hope this helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the internet. Please feel free to us toll-free 888-844-3393, we're the company that's here for you on the internet and in person.
